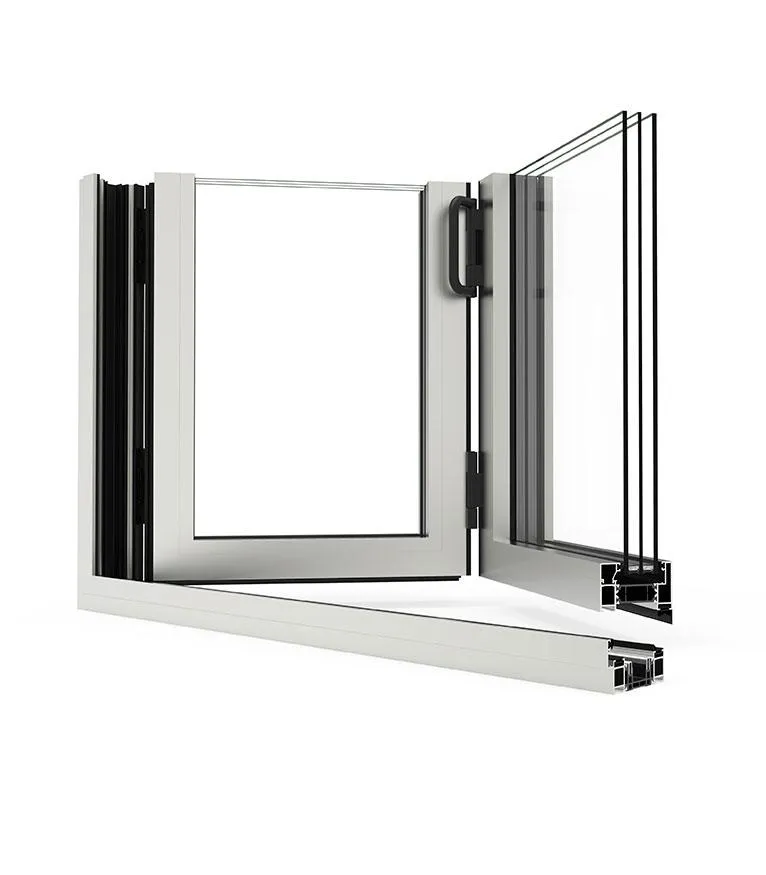

Cortizo Bifold Plus

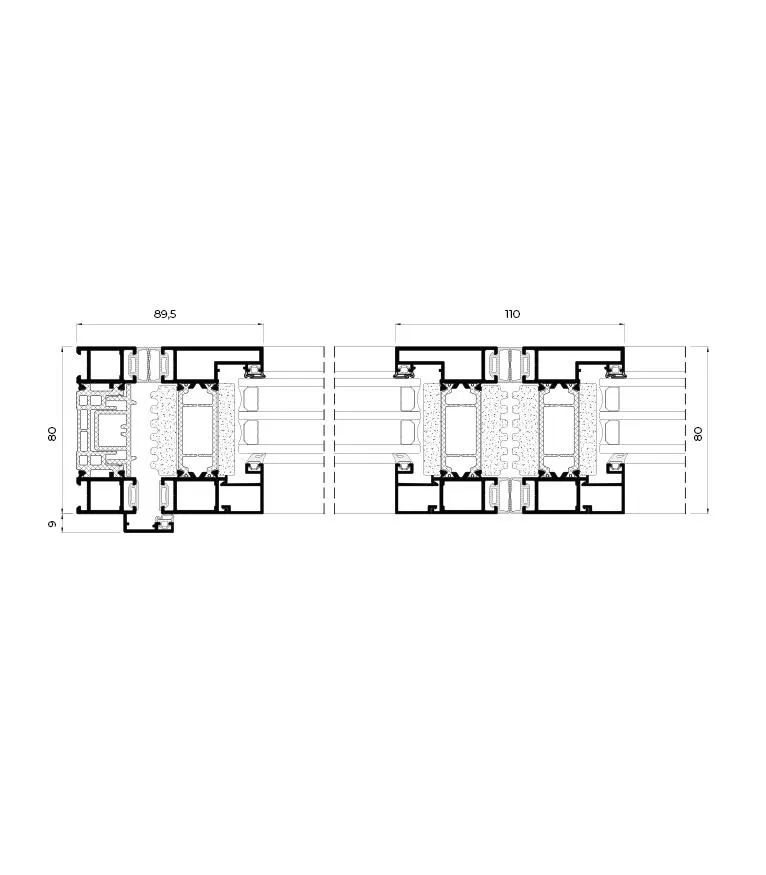

Separate environments and unify spaces with this bi-fold door system with an 80 mm deep frame. This evolution of the Bi-fold series offers an excellent thermal and acoustic performance, thanks to its 45 mm thermal bridge breakage and a glazing capacity up to 48 mm. Besides, it presents a slim central section of 110 mm which allows the maximisation of the glazed surface, filling the interior spaces with natural light.

Possibilities

» Accessibility

» Security hardware

» Glazing

Max. 48 mm

Min. 25 mm

» Opening possibilities

Inward opening

Up to 14 sashes

Outward opening

Up to 14 sashes

90º corner sash without mullion

» Sightlines

Frame 73 mm

Sash 73 mm

» Profile thickness

1,8 mm

» Polyamide strip length

Frame 20 mm

Sash 30 mm

» Maximum sash dimensions

Width (L) 1200 mm

Height (H) 3000 mm

» Maximum sash weight

120 Kg

Consult maximum weight and dimensions according to typologies.

» Finished

Possibility of bicolor systems

Color powder coating (RAL, mottled and rough)

Wood effect powder coating

Anti-bacterial powder coating

Anodized

» Transmittance

Uw ≥ 0,8 (W/m2K)

Consult maximum weight and dimensions according to typologies

» Air permeability

(EN 12207) Class 4» Water tightness(EN 12210) Class E750

» Wind resistance

(EN 12210) Class C3

» Security test

PAS24Passed

» Repeated openings and closings

50.000 cycles (Main swing door)

25.000 cycles (Even sashes) (Even sashes)

Reference test 3,73 x 2,50 m, 3 sashes

Security test: 3 sashes reference test. Configuration 321. 2,70 x 2,50 m

Resistance to repeated openings and closings: EN 1191, 3 sashes reference test.

Configuration 321. 3,73 x 2,50 m
